Coding Machine

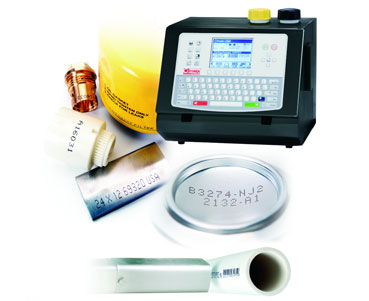

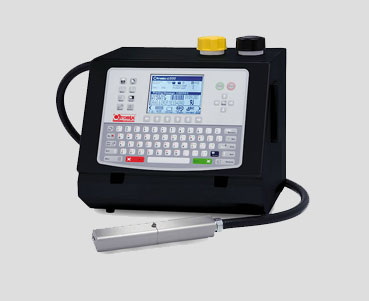

Industrial Ink-Jet Printer Citronix Ci 580

Industrial Ink-Jet Printer

Ci580 :

Industrial inkjet printer the Citronix ci580 is a smart-featured continuous ink jet printing System (CIJ). Designed To meet a broad range of applications, the ci580 features the most common needed functions and capabilities necessary for the typical identification, lot / date code, sell-by date printing applications.

Printing :

Continuous Inkjet Printer the ci580 prints 1 or 4 lines of print and has the ability to print 1/2" (12mn) images. Text, Graphics and Bar codes are possible. Speeds in excess of 1200 ft/minute can be achieved with 1 line of print and 200 ft/ minute with 4 lines of print. Selections of MEK, Acetone or Ethanol based links are available for immediate dry times and superior adhesion to a variety of substrates.

Industrial Ink-Jet Printer

Interface :

True WYSIWYG message editing with drag and drop field based structure provide the user the most convenient and versatile message formatting available. A large quarter VGA graphical display with icon-based operations and full size QWERTY style keyboard assure effortless operations. Fast, single start and stop buttons provide the user an efficient start up and shutdown routine. Designed for a global market, the ciSeries systems feature multiple language formats. Print multi-national characters, custom graphics at the touch of a button. Integrated as standard, the ci580 have RS232, a photocell input, shaft encoder, three programmable alarm outputs and I Solid state relay output.

Design :

Inkjet Batch Coding Machine the ci580 is housed in an IP55 (NEMA 4) rated enclosure for operations in extreme wet or dry applications. state-of-the-art single board surface mount electrical technology coupled with integrated smart print head and ink system components monitor critical operating functions. The print head can mount in any orientation or environment. A heating mechanism allows operations in cold areas.

Smart Flush :

Small character inkjet printer the ci580 systems feature the proprietary SmartFlush printed maintenance operations. Makeup solvent is used to clean the print head, nozzle and gutter at start up and shutdowns providing a consistent, reliable daily start up.



Printed Samples
