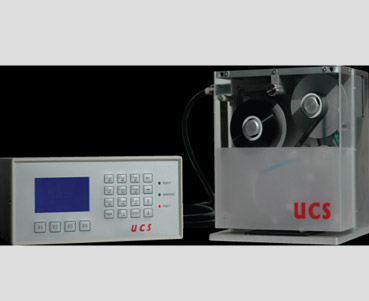

Incorporating break through design on the coder resulted in the birth of an unparallel product UCS1 online thermal transfer overprinter that provides customers in the food and pharmaceutical industry etc high consistent print cycle rate and unmatched print quality.
With UCS1, customers will see significant reduction in print rejects, improvements in print definition and a greatly enhanced image of the product itself.
Thermal Transfer Over printer is suitable for all intermittent applications within the food, pharmaceutical and cosmetics industries and has the capability to code both Julian date codes and 2D Data Matrix codes.
Thermal Transfer Overprinter is suitable for all intermittent applications within the food, pharmaceutical and cosmetics industries and has the capability to code both Julian date codes and 2D Data Matrix codes.
Machine Type: Intermittent
Print Speed: Up to 225mm/s Up to 500PPM
Ribbon Size: 33mm x 450M outside Ink
Ribbon Gap: 0.5mm User Adjustable
Software Interface: RS232
Hardware Interface:
Input: Print Trigger
Output: Print, Warning, Fault
User Interface: Job create without PC Self-Diagnostic function 3.5 Inch blue backlight LED Durable, robust metal casing
Weight: Approx 3.8 KG Controller, Approx 6.0 KG Printer
Print Body: Image Rotation Selectable Font Fixed and Real Time Barcode Logo, Chinese Character Printing Serialize, customized printing Real time, date, expiry date printing
Electric: 220~240VAC 1.0A
Compress Air Supply: Max 6.0 Bar
Operating Environment: Temperature: 0~40 C, Humidity: 0~90%

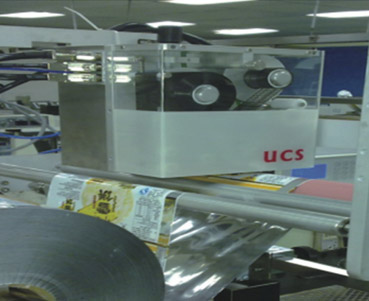

Online thermal transfer printer is suitable for all continuous applications within the food, pharmaceutical and cosmetics industries and has the capability to code both Julian date codes and 2D Data Matrix codes.
UCS2 Features：
Machine Type: Continuous
Print Area: 32mm x 46mm
Print Density: 300DPI 12 dots/mm
Print Speed: 50-650mm/s
Ribbon Size: 33mm x 450M outside Ink
Ribbon Gap: 0.5mm User Adjustable
Software Interface: RS232
Hardware Interface: Input: Print Trigger, Encoder
Output: Print, Warning, Fault
User Interface: Job create without PC Self-Diagnostic function 3.5 Inch blue backlight LED Durable, robust metal casing
Weight: Approx 3.8 KG Controller, Approx 6.0 KG Printer
Print Body: Image Rotation Selectable Font Fixed and Real Time Barcode Logo, Chinese Character Printing Serialize, customized printing Real time, date, expiry date printing
Electric: 220~240VAC 1.0A
Compress Air Supply: Max 6.0 Bar
Operating Environment: Temperature: 0~40 C, Humidity: 0~90%
