Coding Machine

Hot Roll Coding Machine (Dry-Ink Coding Machine)

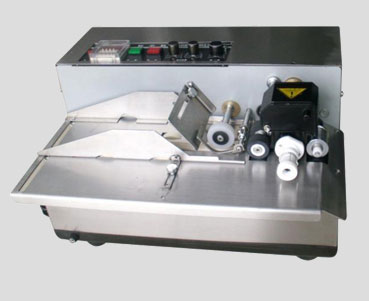

Hot Roll Coding Machine

Hot Roll Coding Machine suitable to neat, sharp & registered print Batch Number, Date Of Manufacturing, Expiry Date, Prices, best before dates, traceability codes, batch codes & other statutory information with the help of the Characters with Aid of Brass Letters. The Print wheel equipped to Dry-Ink Coding Machine can be used for both R arrange and T arrange of characters.
In T arrange Solid-ink Coding Machine can print 1 to 10 characters in each line. In R arrange Solid-ink Coding Machine can print 1 to 8 characters in each line. Automatic Labels & Pouch Dispensing Machine with automatic feeding System, Stack of Pouches is pulled or pushed by roller & collected from the tray after printing the message. It is sensor base machine so it takes one by one and prints at the accurate place. It also adjustable printing and it is also having auto counting. Automatic Coding Machine used for thin cardboard, aluminium foil, printing label on paper and plastic film dry ink coding very high resolution, fast printing, fast dry can be select and strong impression. Stacker Machine is complete solution for print labels coding and marking needs in the pharmaceutical industry, Food and grocery industry, Fresh Produce, Frozen Food, bakery products, Cosmetics bottle labels, cartons and pouches. Batch coder machine very easy to operate those whose production requirement of approximately 10000 to 25000 pieces per day to print help with special dry ink cartridge for strong and permanent marking on most shiny surfaces, including shiny papers, most plastics. Automatic Dry-ink Coding Machine can be used to print notes such as production date, lot number on the plastic and paper bags, in food and pharmaceutical industries. The words printed are clear and endurable against wear and tear.

Video


Printing on Pouches / Label

Printing on Pouches / Label

Printing on Pouches / Label


Printed Samples



Object Size :

Length 55-500 mm, Width 30-300 mm

Voltage (V/Hz)

AC 220/50 110/60

Power (W)

180

Solid Ink Roller (mm)

35×32×16

Printing Speed (pieces/min)

≤300 or 12.5m/min

Object Size (mm) L:

L:50-500 W: 30-190 L: 50-550 W: 30-300

Max. Printing Line

T Arrange (10.5PT):11Lines (Max.10 characters/line)
R Arrange (10.5PT):8Lines (Max.8 characters/line)

Printing Size (mm)

Within 60-250

Type Size (mm)

2×1.5(8PT) 2.5×2(9PT) 3×3(10.5PT) 4×2.5(18PT)

External Dimensions (L×W×H)(mm)

MY 380 F: 440×345×300  MY 380 F/W: 440×465×300

Net Weight (Kg)

MY 380 F: 23    MY 380 F/W: 26
