batch coding machine

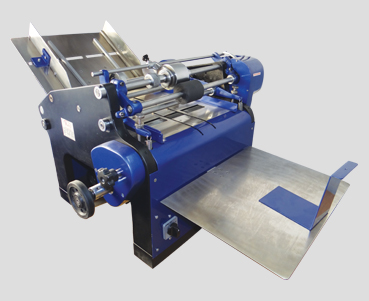

High Speed Automatic Batch Printing Machine (Double Chain)

Automatic Batch Coding Machine suitable to neat, sharp & registered print Batch Number, Date Of Manufacturing, Expiry Date, Prices, best before dates, traceability codes, batch codes & other statutory information with the help of Rubber or Polymer flat Stereos. Machine with automatic feeding System, Stack of Pouches is pulled or pushed by roller & collected from the tray after printing the message. Automatic Batch Coder can be Use as a conveyor for Inkjet printer like automatic feeding Machine or Stacker Machine, Automatic contact coding machine is complete solution for print labels coding and marking needs in the pharmaceutical industry, Food and grocery industry, Fresh Produce, Frozen Food, bakery products, Cosmetics bottle labels, cartons and pouches. Batch coder machine for the production requirement of approximately 10000 to 25000 pieces per day to print help with special batch coding ink ( paste ink or Liquid Ink )and Ink Activator for reducer ink viscosity it stronger than permanent marker ink on most shiny surfaces, including shiny papers, most plastics. Automatic Labels, Cartons & Pouches Coding Machine installs mechanical arrangement to print at the accurate place.

Automatic Pouch Batch Printing MachineHigh Speed Automatic Batch Printing Machine (Double Chain) * 1.5 Feet Length

Over All Dimensions:

850mm X 765mm X 575mm

Speed:

125/180/250 imprints per minute.

Printing Media:

Fast dry permanent paste ink or Liquid Ink

Label, Pouch or Carton Size:

Minimum 75mm X 35mm to Maximum 300mm X 200mm

Motor:

¼HP/ 0.18KV 1440RPM (50Hz)

Power:

230 Volts, Single Phase or 400/440 Volts, 3Phase

Weight:

Approx 95 kg

Applications:

Label & Sticker, PVC Shrink Sleeve, small carton, pouch and sachet,

Video



Printed Samples





High Speed Automatic Batch Printing Machine (Double Chain)* 3 Feet Length

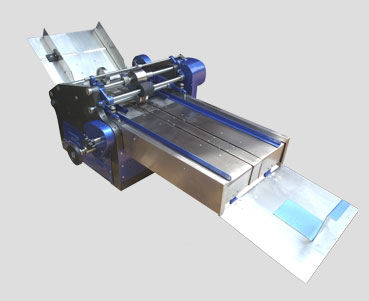

Automatic Pouch Batch Printing Machine

Over All Dimension :

1310mm X 415mm X 575mm

Speeed :

125/180/250 imprints per minute.

Printing Media :

Fast dry permanent paste ink or Liquid Ink

Label, Pouch or Carton Size :

Minimum 75mm X 35mm to Maximum 300mm X 200mm

Motor :

¼HP/0. 18KV 1440RPM (50Hz)

Power :

230 Volts, Single Phase or 400/440 Volts, 3Phase

Weight:

Approx 120 kg

Applications:

Label & Sticker, PVC Shrink Sleeve, small carton, pouch and sachet,
